Nicemark

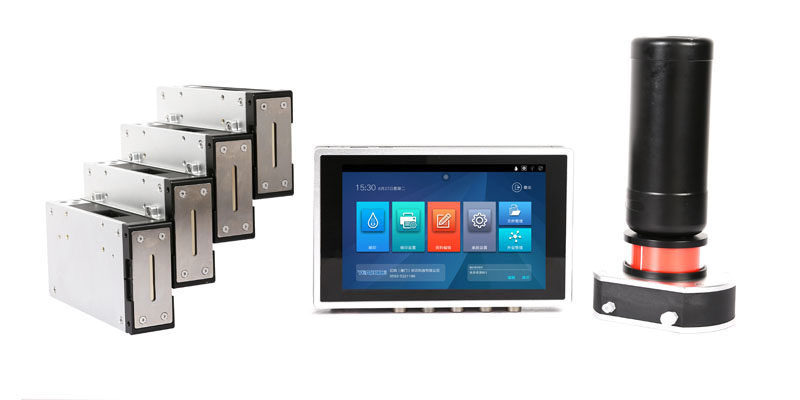

84 Series Inkjet Printer

Nicemark 84 Series Inkjet Printer allows free combination and grouping of up to 4 printheads with a single controller, and prints up to 128mm height high quality contents downward/sideward in high speed production lines, also supports water based, oil based, solvent and UV ink to print on both porous and non-porous substrates.

Combination & Grouping

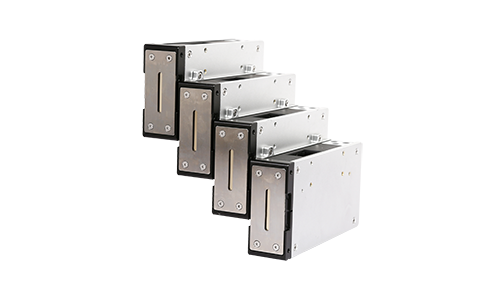

Modular printhead design enables free combination and grouping of up to 4 printheads.

Friendly User Interface

8-inch capacitive color touchscreen, Android based interface, easy access to core functions, support various language and input methods.

Continuous Ink Supply System

Centralized continuous ink supply and management, minimize production line down time and ink cost. Encrypted ink cartridge ensures consistent printing quality.

Multiple Software/Hardware Interface

Provide software development kits, and supports various hardware interfaces (PLC, RS232, RS485, Ethernet) to fulfill various integration needs.

Meet Customized Needs

Open platform and advanced software system structure enable quick response to customized printing needs through plug-ins and updates.

  • Specifications
  • Features
  • Downloads
  • Videos

  • Technology

    Piezoelectric Printing

  • Print Speed

    0-150（300dpi）

  • Throw Distance

    1-5mm

  • Resolution

    300dpi

  • Print Height

    0.5-32.4mm

  • Ports

    USB*2, 12pin I/O_1 (PLC, RS485, Alarm Light), 7pin I/O_2 (Encoder, Photocell, RS232), Ethernet.

  • Ink Supply

    Continuous Ink Supply System(CISS), with built-in alarm lights.

  • Display

    8- inch industrial capacitive color touchscreen, resolution 1280*800

  • Power

    110-240V In, 24V 5A Out

  • Print Orientation

    Sideward/Downward;

  • Ink

    Water-based, Solvent, Oil-based, UV ink;

  • Ink Management

    Auto read ink type and info, auto track ink usage.

  • Working Temperature

    59°F (15°C)~104°F (40°C)

  • Storage Temperature

    41° F (5°C)~113°F (45°C)

  • Hardware Dimensions

    Controller: 222*143*38mm Printhead: 172*87*38mm CISS: 120*103*70mm

  • Certifications

    CE、FCC
